| Brand Name : | Yifang |
| Model Number : | Welding Cable |
| Certification : | CE, China MA, ISO |
| Price : | USD 10~100 per meter |
| Supply Ability : | 100000 per month |
Application
• Secondary voltage resistance welding leads in
heavy duty or mining applications
• Power supply applications not exceeding 600
volts AC
• Sizes 1/0 and larger for permanent wiring in
conduit or tray of 600 V power supplies, hoists,
cranes or other applications where flexible power
leads must be installed in conduit, raceways or
trays
Design features
Conductors:
• 6 AWG through 4/0 AWG fully annealed
stranded bare copper
Jacket:
• 105°C, black
Thermal parameters
Max. permissible temperature at conductor -50°C to +105°C
Features
• Water-resistant
• Sunlight-resistant
• Designed to withstand severe environmental
conditions
• Withstands exposure to oil, acids, alkalies, heat,
flame, moisture and chemicals
TECHNICAL DATA SHEET OF HEAVY DUTY WELDING CABLE
| 1 | Rated Voltage | V | 600 |
| 2 | Conductor | ||
| Cross section | AWG | 4/0 | |
| Material | -- | Flexible copper wire , class K | |
| Single wire dia. | No./AWG | 1950 / 30 | |
| Approx. dia. of conductor | mm | 12.5~13.5 | |
| 3 | Wrapping layer | -- | Yes |
| 4 | Insulation | ||
| Material | -- | EPDM | |
| Nominal Thickness | mm | 2.0 | |
| MInimum Tensile Strength | Mpa | 7 | |
| 6 | Max. D.C. resistance at 20℃ | Ohm/km | 0.21518 |
| 7 | Max. Overall Dia. | mm | 20 |
| 8 | Approx. weight | kg/km | 1212 |

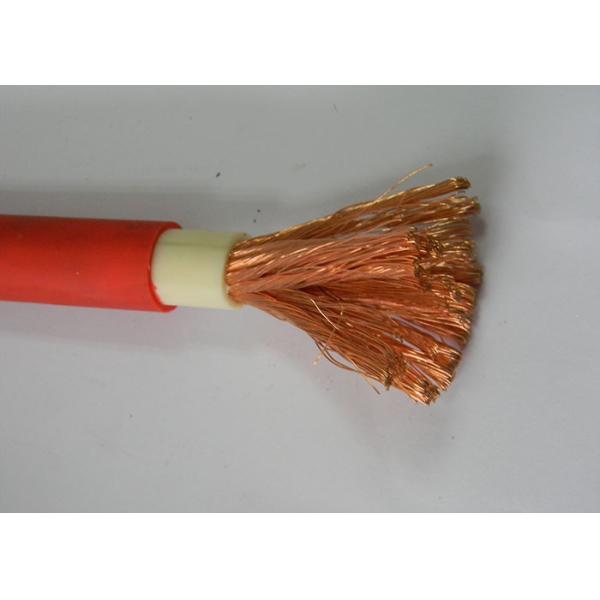

Drawing:
|
