Zhengzhou Yifang Cable Co., Ltd Over 10 years International trade experience, Professional R& D department Strict quality control system.
8 Years
| Ask Lasest Price | |
| Brand Name : | Yifang Cable |
| Model Number : | 11kv 33kv ccovered conductor 50mm2, 80mm2 |
| Certification : | CE,ISO,CCC |
| Price : | USD 0.1-20/M |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 500KM/month |
| Delivery Time : | 15days |
| NUMBER OF CORE | Single core |
| CONDUCTOR |
|
| CONDUCTOR SHIELD | Semi conducting cross-linked polyethylene |
| INSULATION |
|
| SHEATH |
|
| CLASSIFICATION |
|
| TESTING VOLTAGE | 49KV for 5 minutes |
| REFERENCE | ICEA S-66-524 /MEA/PEA |
| Nominal Sectional Area mm2 | Minimum Number of wire NO | Diameter of Conductor (approx.) mm | Thickness of Insulation mm | Thickness of sheath mm | Overall Diameter (approx.) mm | Maximum DC. conductor resistance at 20°C Ω / km | Minimum insulation resistance at 15.6°C | Allowable ampacities in free air at 40°C ambient A | Cable weight (approx.) kg / km |
| 25 | 6 | 5.90 | 4.45 | 3.18 | 22.5 | 1.2000 | 3,153 | 118 | 393 |
| 35 | 6 | 6.95 | 4.45 | 3.18 | 24.5 | 0.8680 | 2,890 | 148 | 443 |
| 50 | 6 | 8.33 | 4.45 | 3.18 | 25.5 | 0.6410 | 2,606 | 184 | 517 |
| 70 | 12 | 9.73 | 4.45 | 3.18 | 27.5 | 0.4430 | 2,375 | 227 | 599 |
| 95 | 15 | 11.45 | 4.45 | 3.18 | 29.0 | 0.3200 | 2,144 | 276 | 711 |
| 120 | 15 | 12.95 | 4.45 | 3.18 | 31.0 | 0.2530 | 1,952 | 318 | 831 |
| 150 | 15 | 14.27 | 4.45 | 3.18 | 32.5 | 0.2060 | 1,830 | 367 | 933 |
| 185 | 30 | 15.98 | 4.45 | 3.18 | 33.5 | 0.1640 | 1,694 | 425 | 1,073 |
| 240 | 30 | 18.47 | 4.45 | 3.18 | 36.5 | 0.1250 | 1,529 | 515 | 1,293 |
About us
Zhengzhou Yifang Cable Co., Ltd is a large joint-stock, hi-tech enterprise established in 2001. We are specialized in wires & cables, including designment, production and sales. Located in Zhengzhou, China, our factory's position is extremely advantageous.

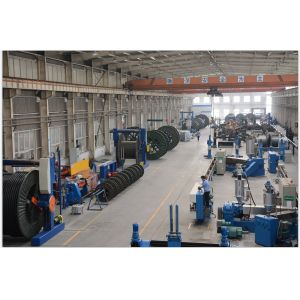

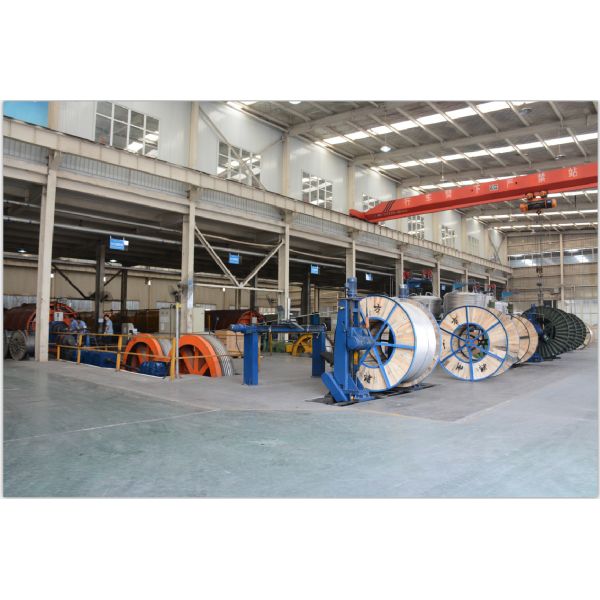

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.
Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire),flame retardant mining cable, etc
We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
|
|
