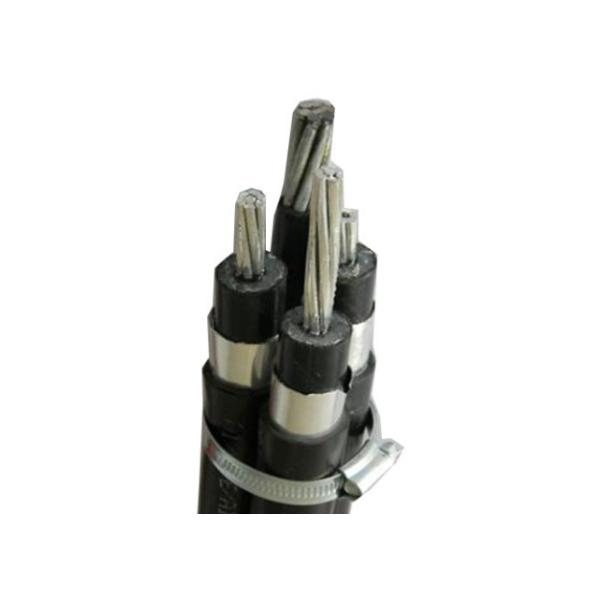

Medium Voltage Overhead Insulated Aluminum Conductor XLPE Insulated ABC Cable

Application:

The product is used in aerial Power line at rated voltage 3-35KV

Applicable Standards:

IEC60502-2, DIN VDE 0276-620, ICEA S-93-639, AS/NZS 3599, SANS 1713, NFC33-226

Production Scope:
Number of Core: 1, 3 or 3+K
Voltage: Up to 35 KV
Cross Section for each Core: from 30mm2 to 800mm2

Construction:
Phase Core
Conductor: Stranded copper/ Aluminum/Aluminum alloy.
Insulation: XLPE / TRXLPE
Metallic screen (optional): Copper tape/Copper wire/Copper wire + tape / Al tape
Jacket: PVC/PE
Messenger Conductor (optional):
Conductor: ACSR /GSW/AAAC
Insulation(Optional): PVC/ XLPE/ TRXLPE

Loading Containers:

We can design and produce according to client's requirement. Welcome to contact us for any more information!
